Sensors

Inductive Proximity sensors

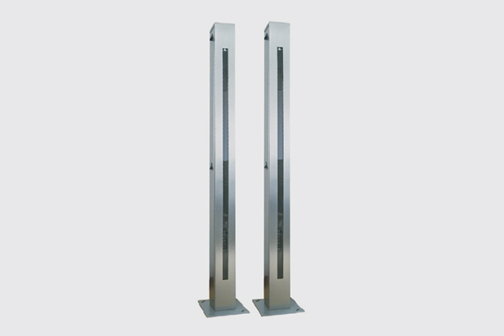

IR SENSOR

FEATURES

  • Minimum Detectable Object (MDO) : 65 mm
  • Beam Separation : 60mm
  • Number of beams : 16
  • Detection Height : 900 mm
  • Evaluation beams : Parallel Beam
  • Sensor Principle : Sender / Receiver
ITEM SPECIFICATION
Model TVE-IR
Supply Voltage DC 15V to 30V
Wave length 880 nm
Power Consumption Sender < 100 mA
Power Consumption Receiver < 100 mA
Ripple < 5 V
Output Current ≤100 mA
Output Load Capacitive 100 nF
Output Load Inductive 1 H
Initialization Time 1 s
Switching Output 2 X NPN
Output Mode Q dark Switching
Dimensions (WxHxD) 34 mm x 976 mm x29 mm
Connection Type Male Connector M12, 4-pin
Housing Material Aluminum
Indication LED
Synchronization Optical
Enclosure Rating IP65
Circuit Protection Uv Connections, reverse polarity protected Output Q Short-circuit protected
Protection Class III
Weight 2600g
Pulse Frequency 500 kHz
Output Current ≤100 mA
Front Screen PMMA

PERFORMANCE:

Maximum Range 13 m
Minimum Range ≥ 0 mm
Operating Range 9 m
Response Time 14 ms
